Raising the bar for secure machine connectivity

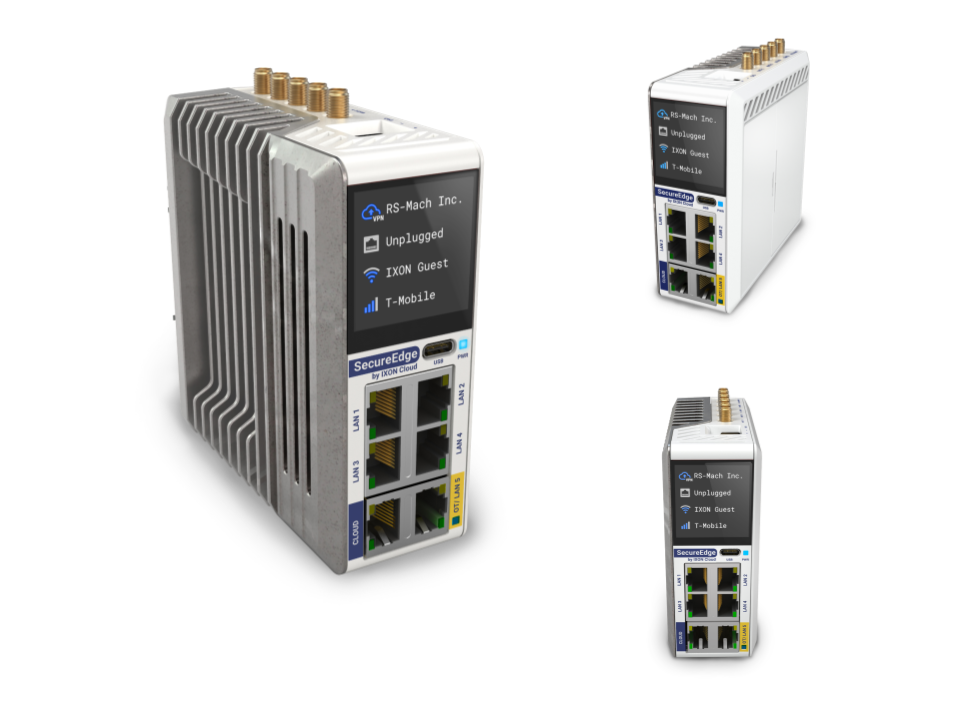

    The SecureEdge Pro makes it easier and more secure than ever for machine builders to stay connected to their machines and customers.

    Take machine connectivity to the next level

    Security compliance

    Robust security

    An integrated firewall to safeguard your machines from cyber attacks, an extra OT port for isolating the factory network from the internet, and of course compliant with IEC-62443 requirements.

    Learn more >

    Pre-built widgets

    Edge computing

    Add intelligence locally to the machine and deploy Docker applications onto the edge device. Build your own Docker apps, or install pre-built Docker apps via the IXON Marketplace.

    Discover Edge apps >

    Ease of use

    Easy to install & use

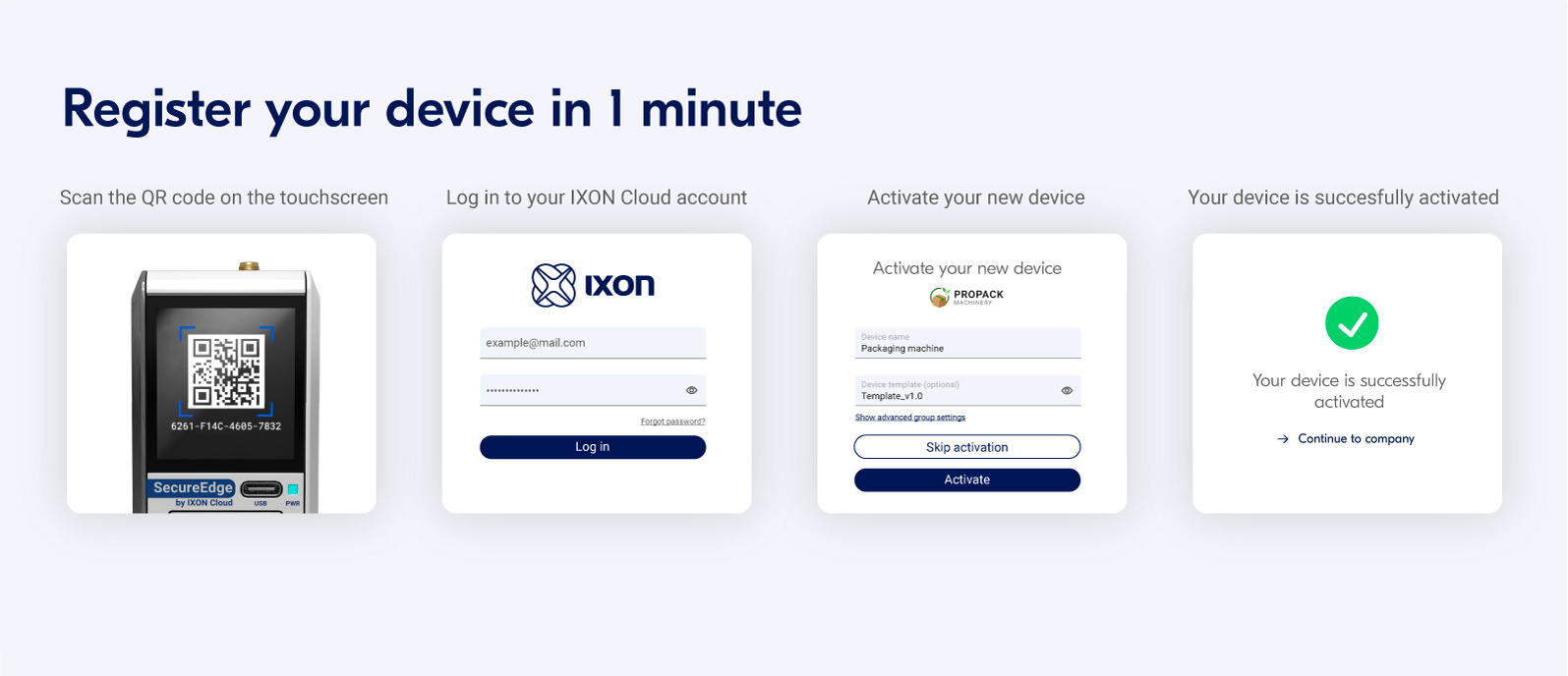

    Registration with IXON Cloud in less than 1 minute, and a full-color touchscreen for quick access to common settings and troubleshooting, a compact industrial design.

    Learn more >

    Functionalities

    100% secure for your customers

    Highly secure connection with your machines is guaranteed by our IEC 62443 compliant edge gateway. The SecureEdge Pro sets up a secure outgoing connection that can be deactivated locally by the customer. The configurable OT port lets you isolate the factory network from the internet. IXON's Certificate Authority system prevents Man-in-the-Middle attacks, offers secure boot, while using a fixed IP address or opening firewall ports is no longer necessary.

    Key security features include:

    • Dedicated OT network port: Keeps the factory network isolated from the internet, significantly reducing the risk of cyber threats and ensuring uninterrupted operations.
    • Built-in TPM chip: Enables secure generation and storage of cryptographic keys. This makes it possible to securely boot from trusted hardware and software, and enables other security features.
    • Compliant with IEC 62443-4-2: Meets strict security requirements for industrial automation and control systems, providing robust protection against a wide range of threats.
    • Regular firmware updates: Receive the latest security patches without affecting legacy OT software or causing downtime.

    Integrated remote access

    Easy web-based access for remote troubleshooting, analysis, software updates or maintenance. The industrial VPN router establishes a secure remote connection from the PLC, Industrial PCs, robots and HMIs to IXON Cloud and the built-in firewall secures the local IT network. No user license fees or bandwidth restrictions.

    Built-in firewall

    The advanced, built-in firewall protects the machines in your network and can be easily configured via the touchscreen or IXON Cloud. The configurable OT/LAN port isolates the factory network from the internet. A dedicated TPM chip can be used to create cryptographic keys.

    Encrypted VPN tunnels

    The SecureEdge Pro gateway connects to a VPN server within the IXON Cloud infrastructure. It always automatically seeks the correct service and fastest available server. This gives you worldwide remote access to every device behind the router, like the PLC and devices in the local machine network.

    Data logging and alarms

    Gain access to the data in your machine devices with data logging, fully managed in IXON Cloud. The edge gateway supports protocols such as OPC-UA, Modbus TCP, Siemens S7, Ethernet/IP and BACnet. This makes it very easy to collect data from PLCs, HMIs, IPCs, sensors, frequency invertors, drives and other industrial components.

    The SecureEdge Pro gateway actively monitors the machine for certain events. In case of a trigger, users are informed about the event via IXON Cloud.

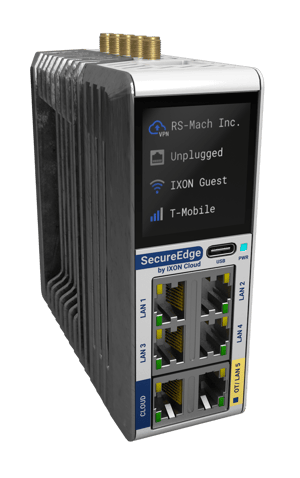

    Compact industrial design

    Designed for the control cabinet. The modern chipset ensures a compact design. The SecureEdge Pro gateway can easily be mounted on a DIN-rail and its connections are where you want them to be.

    Any PLC controller and HMI brand are supported for remote access, such as Siemens PLCAllen-BradleySchneider Electric PLC, Delta, BeckhoffOmron PLC and Mitsubishi.

    Edge computing with Docker apps

    The SecureEdge Pro is designed for edge computing, for e.g. AI applications, advanced data analysis and security enhancements. You can download and install pre-built edge apps available on the IXON Marketplace, or deploy your own customized Docker apps.

    AI & Machine Learning

    The SecureEdge Pro has a powerful ARM Quad-core 1.8Ghz processor, plus a dedicated NPU chip for AI and Machine Learning (ML) purposes. Combined with its 4GB DDR4 SDRAM and the option to store data locally on the gateway, you can execute complex and data-heavy applications near the machine.

    MQTT for data transfer

    IXON Cloud sends commands and configurations to the SecureEdge Pro gateway using the built-in MQTT connection. The edge gateway in turn sends status reports, data and notifications to IXON Cloud.

    Wi-Fi Hotspot & Client

    The SecureEdge Pro gateway functions as a Wi-Fi hotspot, but can also connect to internet over a Wi-Fi network. It even offers these functions simultaneously.

    Regular OTA firmware upgrades

    Remotely push the latest SecureEdge Pro firmware to the gateway using "firmware over the air" (FOTA). Only firmware signed by IXON is accepted, protecting against any unauthorized changes. IXON releases firmware updates on a regular basis.

    PLC data acquisition

    The SecureEdge Pro gateway collects data from your industrial equipment using standard industry protocols, and transmits these securely the IXON Cloud. Transform your machine data into historical and live monitoring dashboards and create machine alarms.

    SecureEdge Pro models

    Providing reliable remote support to your customers means always being able to get your device online, regardless of the options on-site.

    Model Description Ethernet 4G/LTE Wi-Fi GNSS
    IX6000 SecureEdge Pro - Ethernet
    IX6005 SecureEdge Pro - 4G/LTE
    IX6010 SecureEdge Pro - Wi-Fi
    IX6015 SecureEdge Pro - 4G/LTE & Wi-Fi

    Additional product documentation

    IXON_Instalation_SecureEdge

    Accessories for the SecureEdge Pro

    Wi-Fi antennas

    Wi-Fi antenna monopole 3cm
    Wi-Fi antenna screw mount with 3m cable, IP67



    Cellular antennas

    Pentaband antenna rotatable
    Pentaband antenna magnetic mount with 2m cable
    Pentaband antenna screw mount with 3m cable, IP67
    Wideband antenna screw mount with 3m cable, IP67
    Wideband antenna magnetic whip with 3m cable



    Other accessories

    Wall mount power supply for IXrouter
